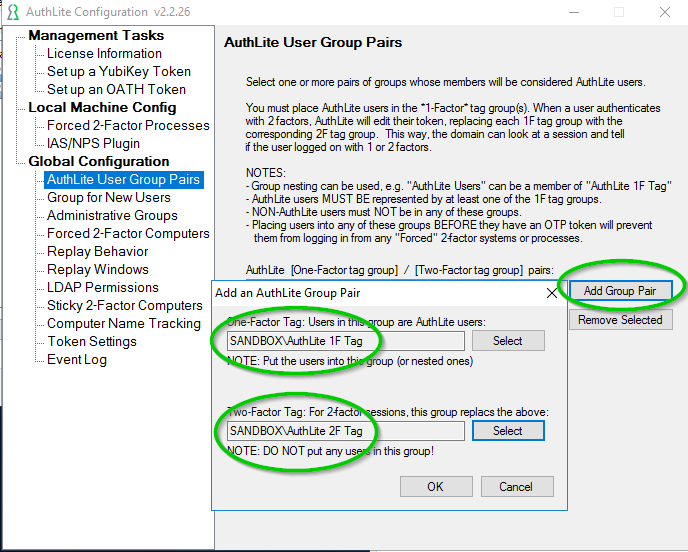

Figure 1: Adding a Group Pair
Figure 1: Adding a Group Pair

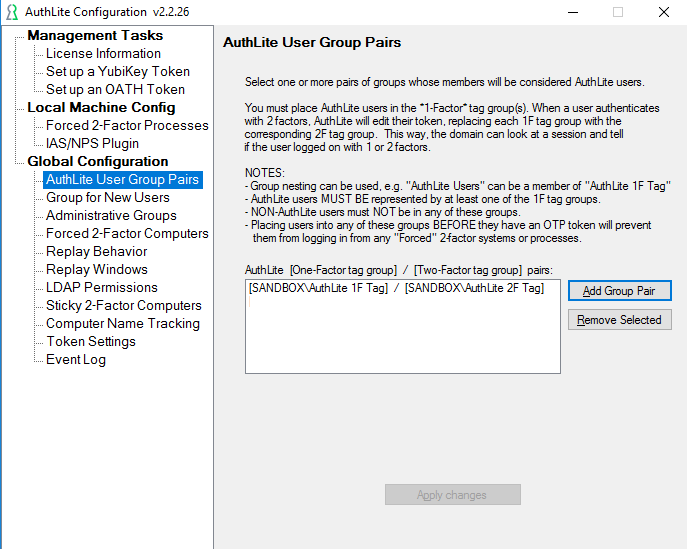

Figure 2: After Group Pair addition
Figure 2: After Group Pair addition

Configure AuthLite to use your 1F and 2F tag groups as shown in Figure 1.

This dialog does two separate things:

1) Identifies AuthLite Users

Users who are in these groups are treated as being AuthLite Users.  Any user who is not included in these groups will never be enforced or blocked by AuthLite.

Note: simply being an AuthLite User or having a token does not require you to use 2-factor login anywhere.  You need to set up Enforcement too!

2) Enables AuthLite to tag sessions as 1 or 2-factor

Each AuthLite user is naturally a member of the 1F Tag group (remember on the previous step we made "AuthLite Users" a member of "AuthLite 1F Tag"? That's why).  This is our way of saying, "If you see a logon of this user, assume it is 1-factor until AuthLite says otherwise."

When the user logs on with an OTP token, AuthLite will do a "search and replace" on their logon session, swapping the 1F Tag group out, and adding the 2F Tag group in its place.  This way, systems and policies that examine the session can tell whether the user logged on with their token or not.  This is the fundamental basis of how AuthLite's permission controls work.

"But I want 2-factor users, shouldn't I put them in the '2F Tag' ?"

No, absolutely not!  If you place users in the 2F Tag group, then (even when they don't use their token) AuthLite and all your systems will believe they used 2-factors.  This totally breaks the security model AuthLite is trying to use.  For most configurations, your 2F Tag groups should be empty of members, and stay that way.  They will just be added to sessions dynamically by AuthLite.
