YubiKey Programmer Operation Tab
YubiKey Programmer Operation Tab
Choose a USB port to use
Choose a USB port to use
Remove each key when it says "DONE". Don't click Finish until you're done programming *all* the YubiKeys
Remove each key when it says "DONE". Don't click Finish until you're done programming *all* the YubiKeys

If you do not have direct physical console access to your domain, or if you want to program a large number of keys efficiently in one sitting, then you can use the following process.

  • From AuthLite.com/downloads, install the "YubiKey Programmer" standalone program on your workstation.

  • Launch it from the Start Menu item called "AuthLite Key Programmer"

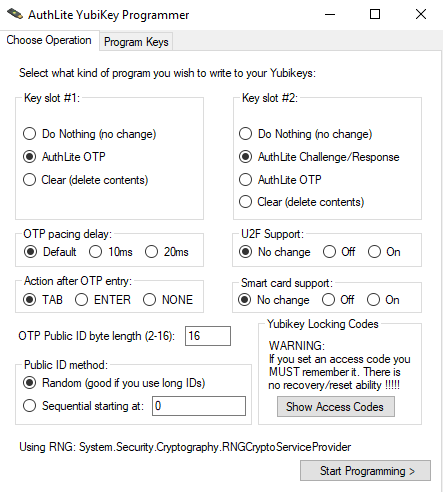

  • Configure slot #1 for "AuthLite OTP" and slot #2 to "AuthLite Challenge/Response". More information on how AuthLite uses YubiKeys.

  • If you are using shorter public IDs than the default, specify the number of bytes on this page as well.

  • Random public IDs can be used if you have a large number of ID bytes.  If you are using very short IDs, you should NOT randomly-generate them because you will end up with collisions (more than one key programmed with the same ID, which will cause an import error).

  • Go to the Choose Ports tab. Plug in a YubiKey to identify which USB port will be used during this programming session. (Note: Due to Windows slow USB enumeration, there doesn't turn out to be much speed advantage to using many ports at once.)

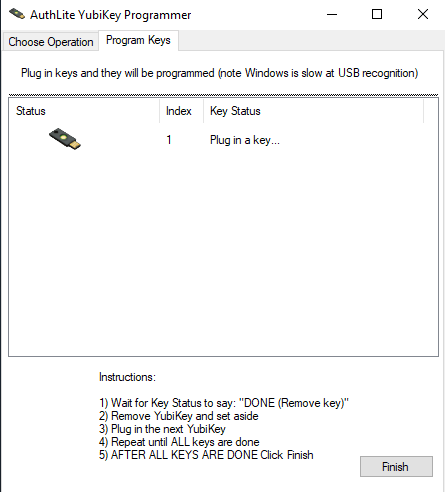

  • When ready, click “Start Programming”, and each time you plug in a YubiKey it will be programmed.

  • Remove the YubiKey when the status reads “DONE (remove key)”. Do not click “Finish” at this point, if you have more keys to program.

  • You can continue to plug in new keys and program them. When finished with all keys, click the “Finish” button.

  • Save the resulting XML file.

Note: This file should be considered sensitive information, as it contains all the secret values programmed into the keys. Treat this with the same security measures you would use for a password list or other secure document.
